Industrial RO Water Purifiers

Industrial water treatment systems meet a variety of purification and separation needs. They can range from relatively compact and straightforward to complex, multiunit processes that serve a variety of applications. If you’re new to water treatment, you might be asking “What is an industrial water treatment system?

An industrial water treatment system treats water so it is more appropriate for a given use, whether for consumption, manufacturing, or even disposal. That said, each system will vary depending on the facility’s needs and many of the technologies that make up these systems can be similar.

2000 LPH RO

Information
Product Specification
Raw Water Pump Centrifugal / Self Priming / Open Well
Dual Media Filter 150 Lit , Size 1465
Anthracite Filter 150 Lit , Size 1465
Valve Manual MPV of 1.5”
Anti Scalant Dosing System Electronics Diaphragm
Micron Cartridge Filter 20” 4” Día, 2 No.
High Pressure Pump Vertical Multi Stage
High Pressure Pump Vertical Multi Stage Shimge, 4 HP Motor, I or III phase
Pressure Tube FRP 8080*1
Membrane TFC 8040*2
Pressure Gauge Four, Glycerine fill 0-21 kg/cm2
Flow Meters Two for Production & Rejection
Atomization Panel Board Digital panel board with online TDS Meter
LPS Low pressure switch to control the dry run of pump
SV Flushing of membrane to increase the life of membrane
Floaty For atomization of product water tank
Piping One Lot of FRP
Skid SS

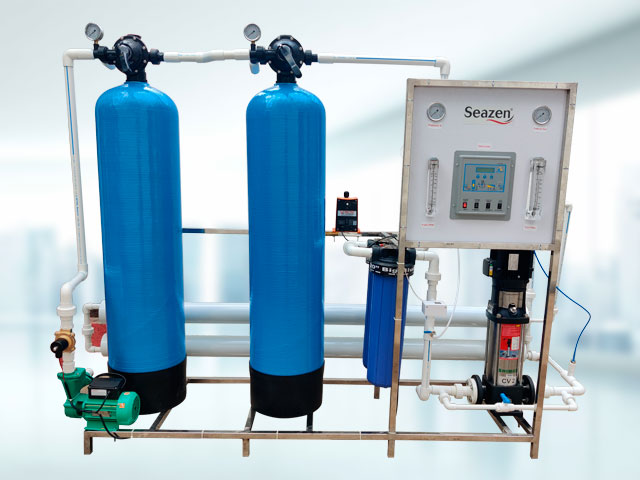

1000 LPH RO

Information
Product Specification
Raw Water Pump Centrifugal / Self Priming / Open Well
Dual Media Filter 105 Lit , Size 1354
Anthracite Filter 105 Lit, Size 1354
Valve Manual MPV of 1”
Anti Scalant Dosing System Electronics Diaphragm
Micron Cartridge Filter 20” 4” Día, 2 No.
High Pressure Pump Vertical Multi Stage
High Pressure Pump Vertical Multi Stage Shimge, 3 HP Motor, I or III phase
Pressure Tube FRP 8040*2
Membrane TFC 4040*4
Pressure Gauge Four, Glycerine fill 0-21 kg/cm2
Flow Meters Two for Production & Rejection
Atomization Panel Board Digital panel board with online TDS Meter
LPS Low pressure switch to control the dry run of pump
SV Flushing of membrane to increase the life of membrane
Floaty For atomization of product water tank
Piping One Lot of FRP
Skid SS

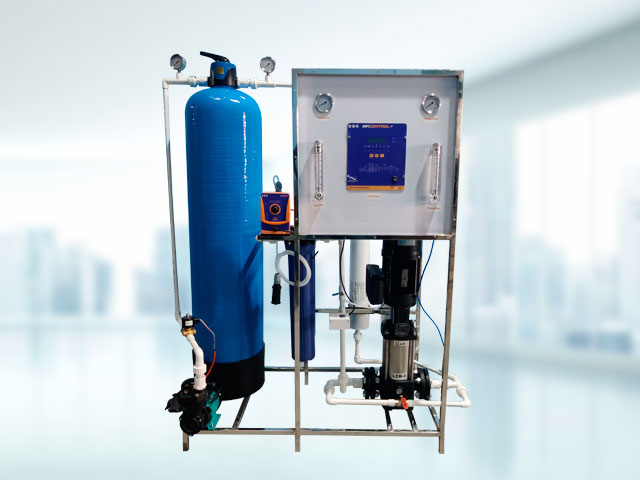

500 LPH RO

Information
Product Specification
Raw Water Pump Centrifugal / Self Priming / Open Well
Dual Media Filter 105 Lit , Size 1354
Valve Manual MPV of 0.75”
Anti Scalant Dosing System Electronics Diaphragm
Micron Cartridge Filter 20” 2.5” Día, 2 No.
High Pressure Pump Vertical Multi Stage
High Pressure Pump Vertical Multi Stage Shimge, 2 HP Motor, I phase
Pressure Tube FRP 4040*2
Membrane TFC 4040*2
Pressure Gauge Four, Glycerine fill 0-21 kg/cm2
Flow Meters Two for Production & Rejection
Atomization Panel Board Digital panel board with online TDS Meter
LPS Low pressure switch to control the dry run of pump
SV Flushing of membrane to increase the life of membrane
Floaty For atomization of product water tank
Piping One Lot of FRP
Skid SS

250 LPH RO [Eco]

Information
Product Specification
Raw Water Pump 0.5 HP
Micron Cartridge Filter 20” 2.5” Día, 2 No.
High-Pressure Pump Vertical Multi-Stage
Shimge, 2 HP Motor, I phase
Pressure Tube FRP 4040*1
Membrane TFC 4040*1
Pressure Gauge One, Glycerine fill 0-21 kg/cm2
Flow Meters One for Production
MCB For On and Off of the Plant
Piping One Lot of FRP
Skid SS

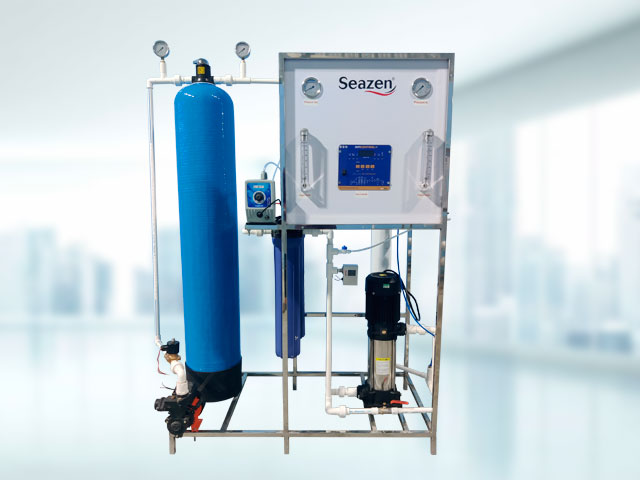

250 LPH RO

Information
Product Specification
Raw Water Pump Centrifugal / Self Priming / Open Well
Dual Media Filter 60 Lit, Size 1054
Valve Auto MPV of 0.75”
Anti Scalant Dosing System Electronics Diaphragm
Micron Cartridge Filter 20” 2.5” Día, 2 No.
High-Pressure Pump Vertical Multi-Stage
Shimge, 2 HP Motor, I phase
High-Pressure Pump Vertical Multi-Stage Shimge, 2 HP Motor, I phase
Pressure Tube FRP 4040*1
Membrane TFC 4040*1
Pressure Gauge Four, Glycerine fill 0-21 kg/cm2
Flow Meters Two for Production & Rejection
Atomization Panel Board Digital panel board with online TDS Meter
LPS Low-pressure switch to control the dry run of pump
SV Flushing of the membrane to increase the life of the membrane
Floaty For atomization of product water tank
Piping One Lot of FRP
Skid SS
